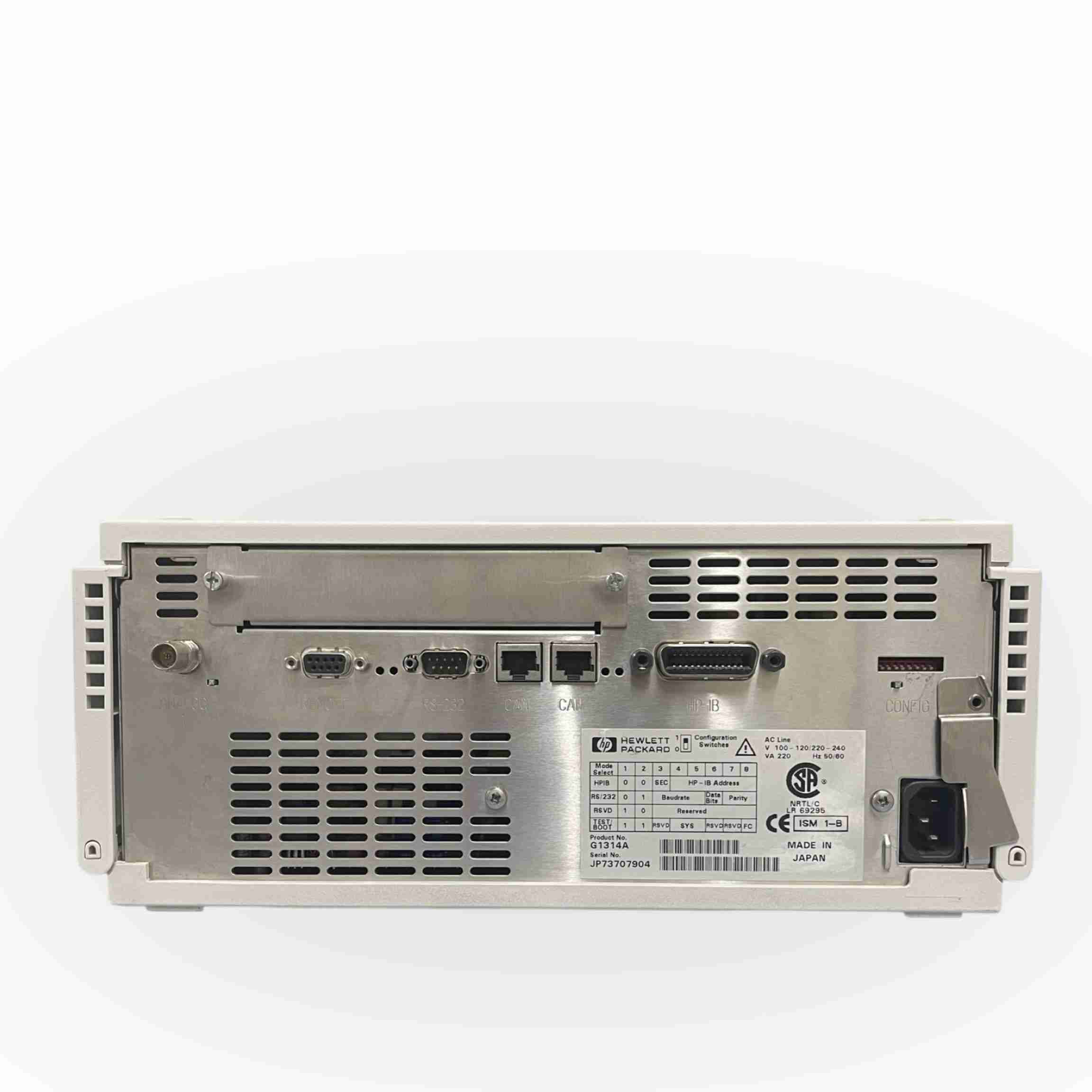

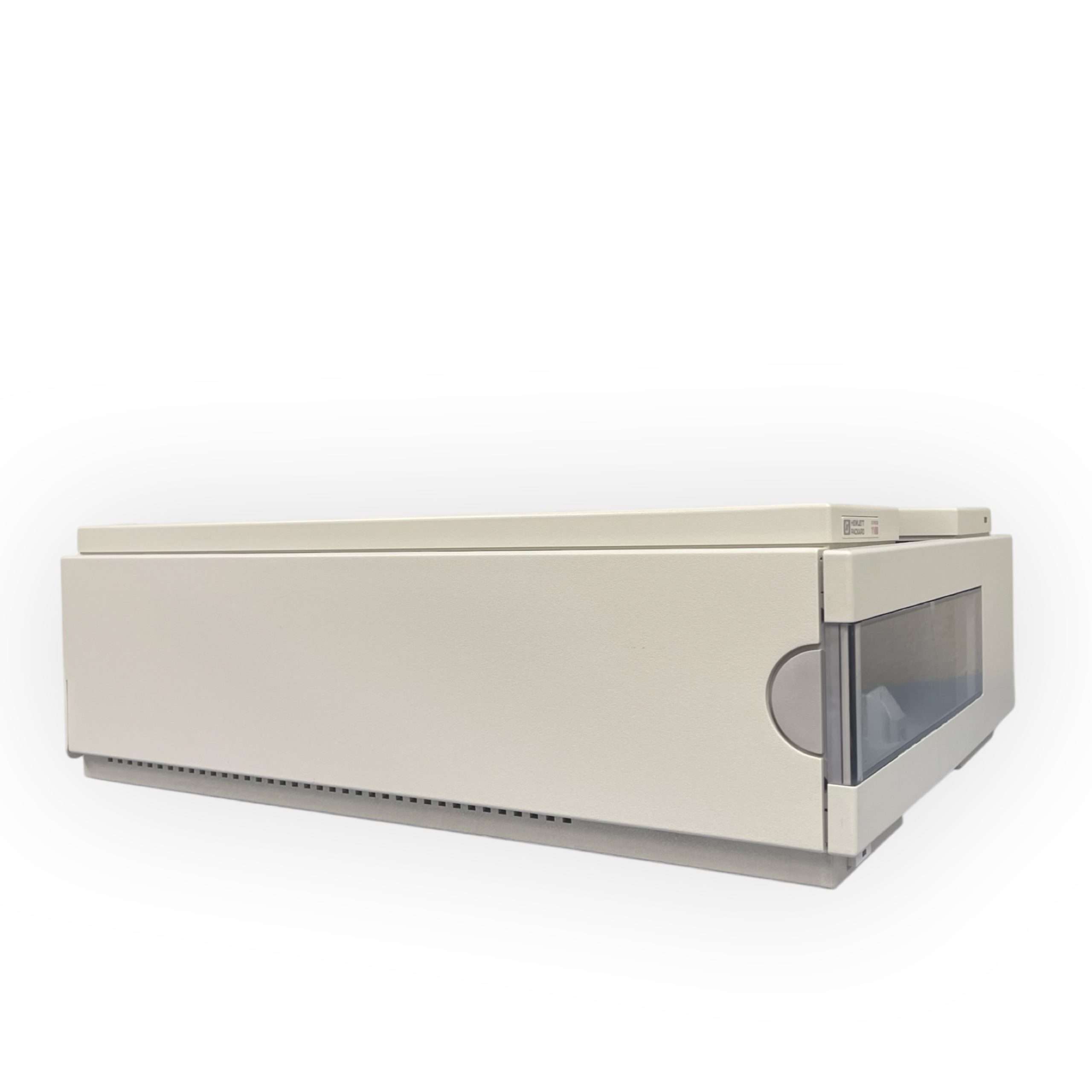

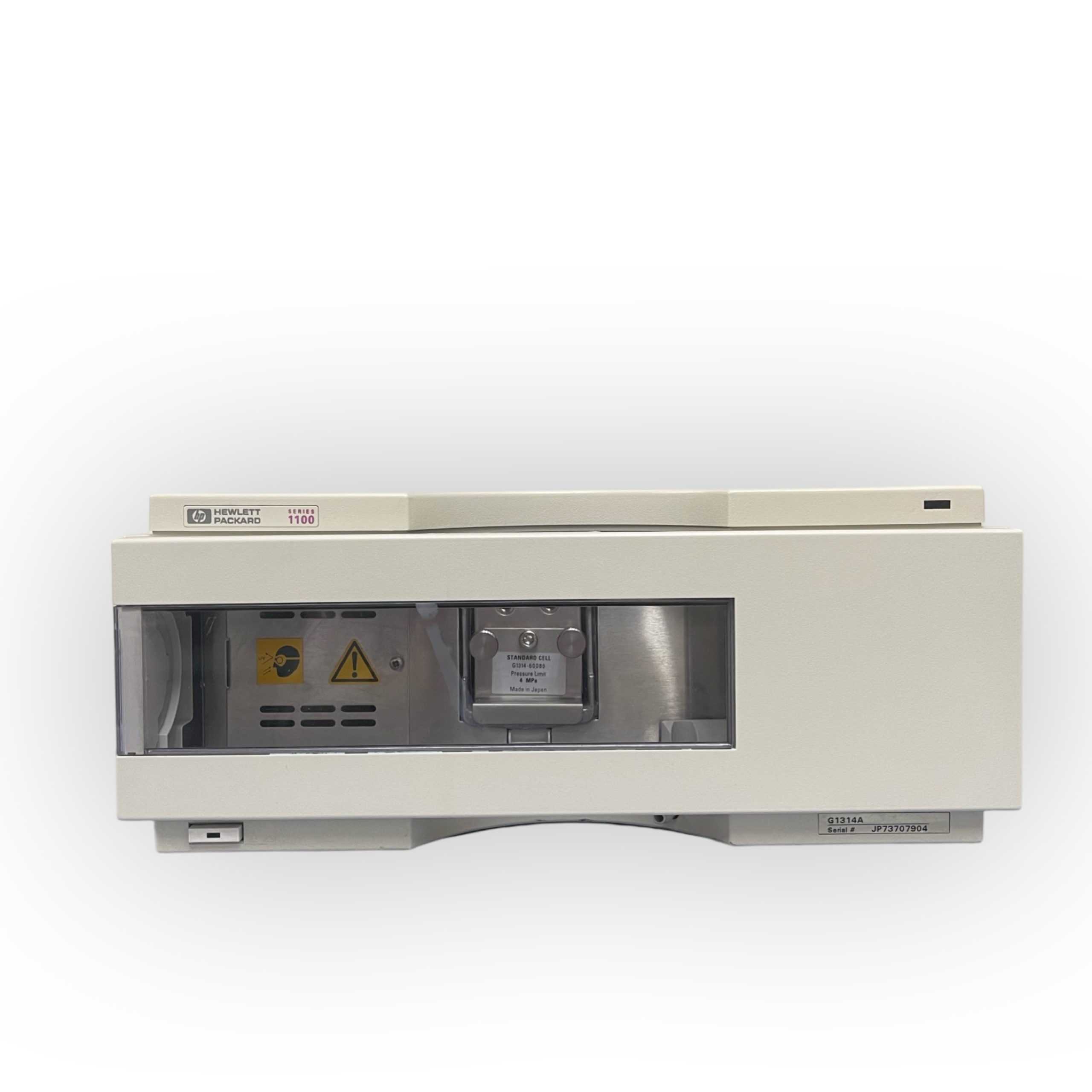

Agilent/HP 1100 Series G1314A Diode Array Detector

Agilent/HP 1100 Series G1314A Diode Array Detector

Bring next‑level insight to your HPLC separations with this fully functional Agilent/HP 1100 Series G1314A Diode Array Detector—ideal for UV‑vis spectral scanning, peak‑purity checks, and quantitative analysis in one compact module.

Condition & Testing

Professionally Refurbished: Inspected, cleaned, and all critical optics & electronics fully tested to OEM specs

Product Overview

The G1314A integrates a 1024‑element photodiode array for simultaneous multi‑wavelength detection from 190 nm to 600 nm, letting you:

• Scan full spectra on the fly for rapid identification of coeluting peaks

• Perform peak‑purity analysis without extra runs

• Quantify multiple components from a single injection

Key Features

• Broad Spectral Range: 190–600 nm for small molecules up to larger UV‑absorbing compounds

• High Resolution: 0.5 nm spectral bandwidth ensures crisp, reproducible peak shapes

• Low Cell Volume: ~8 µL flow‑cell (10 mm path length) minimizes band‑broadening and maximizes sensitivity

• Fast Scan Rate: Acquire full-spectrum data in
