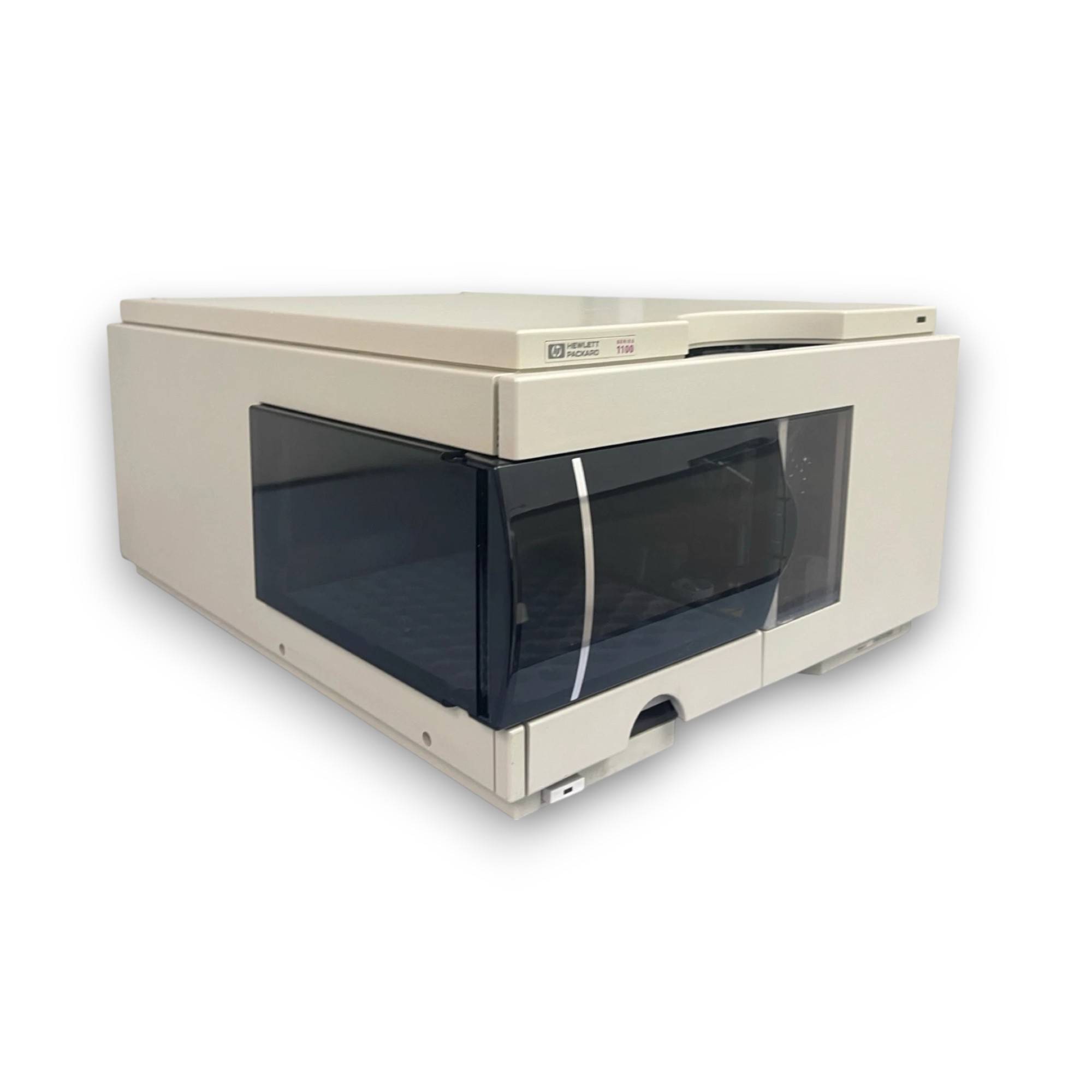

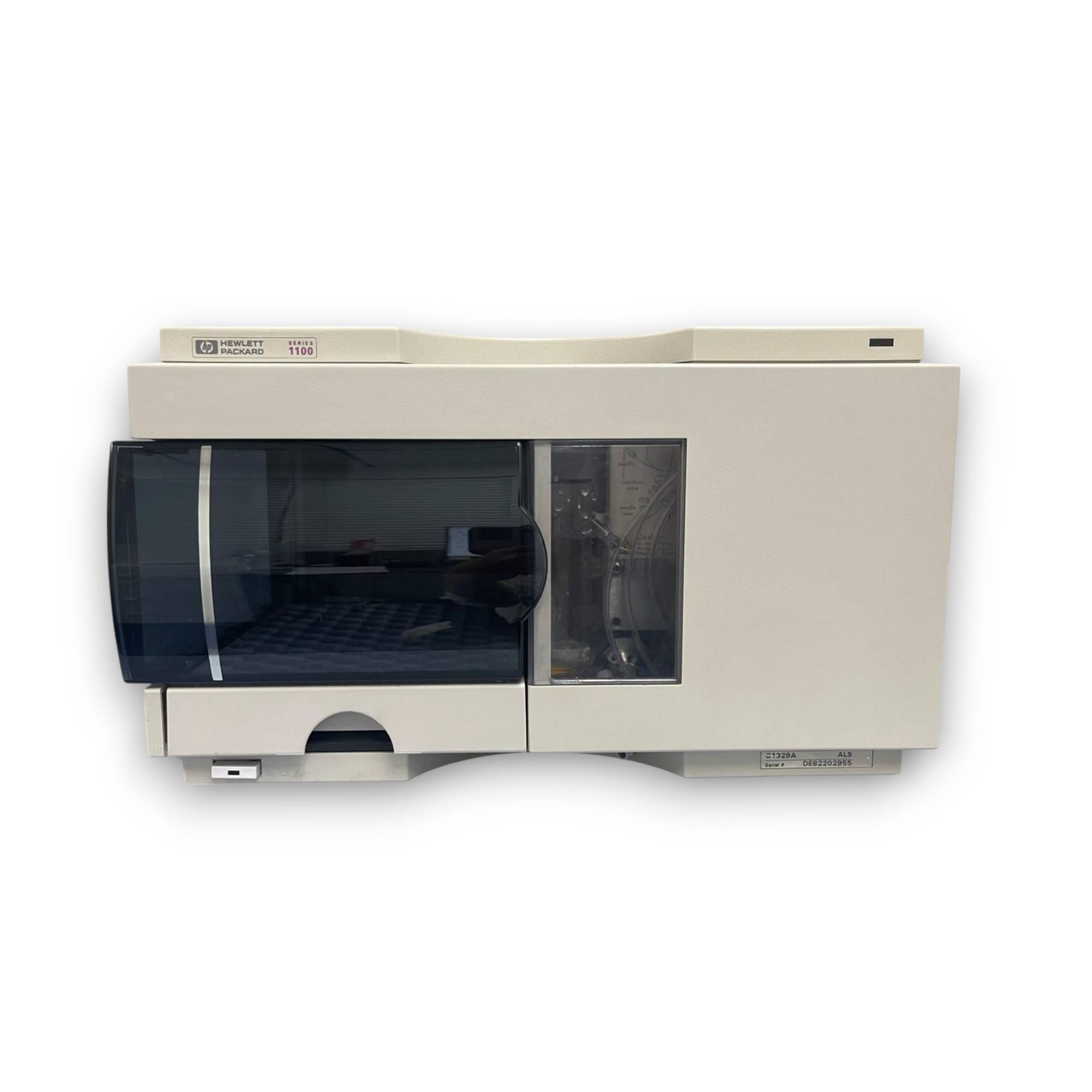

Agilent (HP) 1100 Series G1329A Automatic Liquid Sampler (ALS)

Item Overview

• Model: Hewlett‑Packard / Agilent 1100 Series G1329A

• Function: Automatic Liquid Sampler (ALS) module for HPLC

• Serial #: DE82202955

• Condition: Fully refurbished, cleaned & tested in our ISO‑certified lab

Refurbishment Highlights

Every fluid‑path component was taken apart, ultrasonically cleaned, and reassembled with new perfluoroelastomer seals.

• Complete Disassembly & Cleaning

Volumetric accuracy verified across the full 0.1–100 µL range; injection precision Electrical & Communication Check

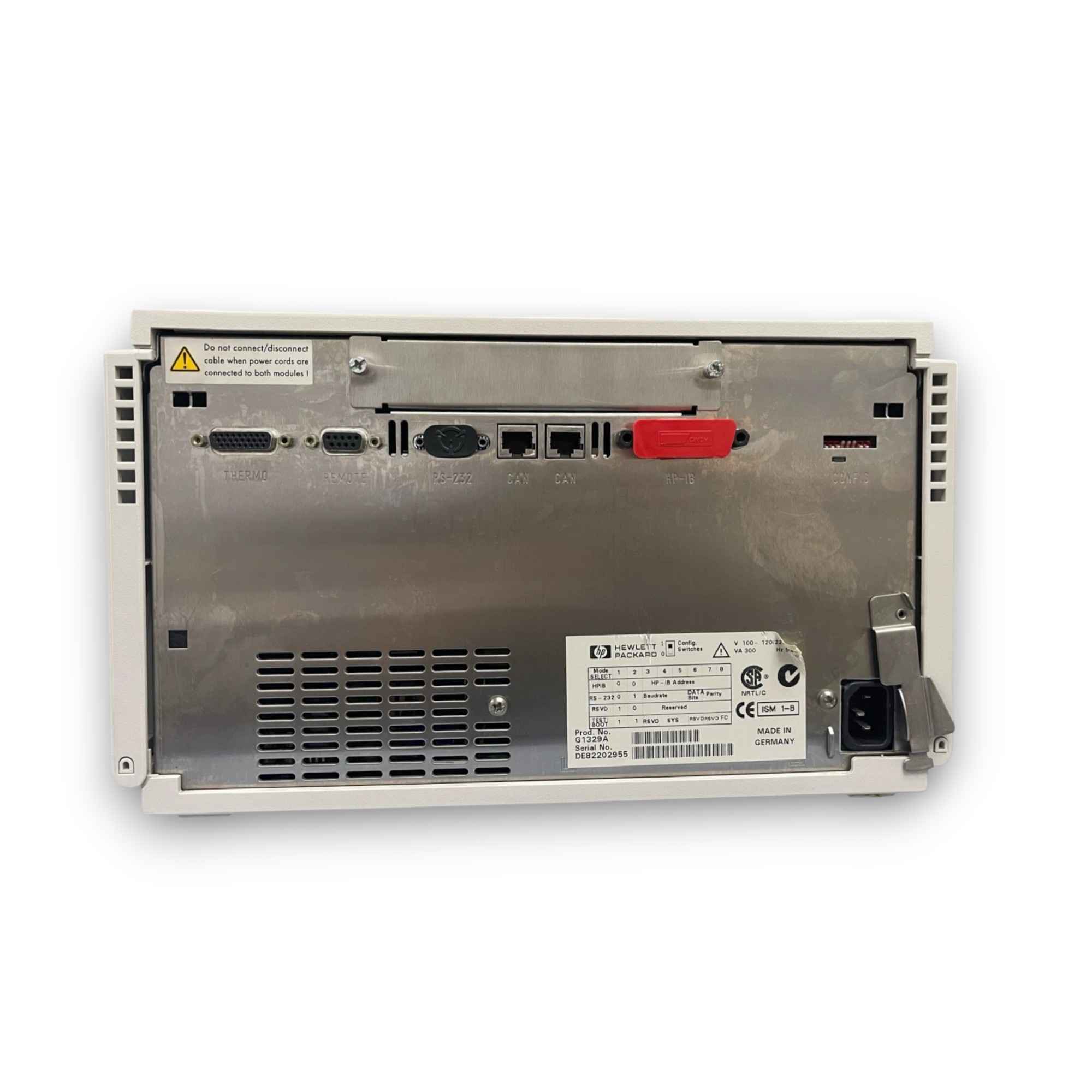

All I/O ports (RS-232, CAN, Thermo/Remote, HP‑IB) validated; DIP‑switch settings reset to factory defaults.

• Precision Calibration

Zero‑carryover confirmed with aqueous/organic test runs; no leaks at 400 bar.

• Leak & Carryover Test

Exterior housings repainted to original matte‑ivory finish; dark‑tint sample‑tray door replaced.

• Cosmetic Restoration

Key Features & Specifications

• Sample Capacity: Up to 100 vials (1.5–10 mL), interchangeable tray formats

• Injection Volume: 0.1 – 100 µL (adjustable in 0.1 µL increments)

• Carryover: Interfaces:

• RS‑232 for legacy systems

• Dual CAN bus for SCIEX/Agilent network

• HP‑IB (GPIB) for instrument control

• Power: 100–120 VAC or 220–240 VAC auto‑switching
